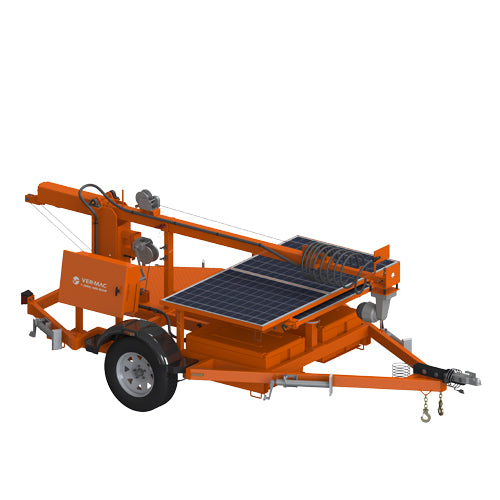

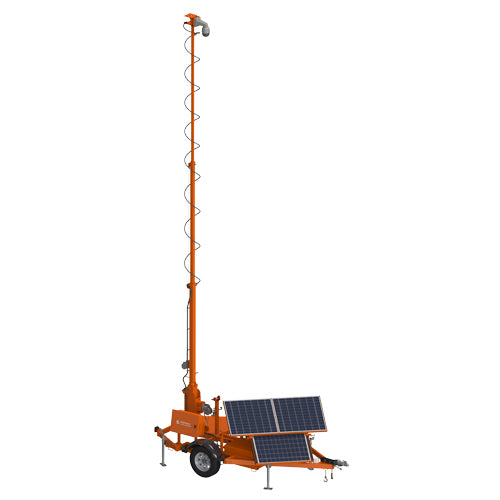

CT-2430 TRAILER-MOUNTED CAMERA

The CT-2430 is a portable camera trailer designed to provide height and stability for the deployment of outdoor dynamic video surveillance. The CT-2430 camera trailer is perfect to remotely monitor work zones, construction sites, special events or any application where permanent cameras are not available or feasible.

FEATURES AND BENEFITS

30’ (9m) mast – Rotates 360 degrees and retracts for easy transport
Tilt-and-Rotate solar panels – Maximize solar recharging and increase battery life
12 VDC / solar power system – Sustainable video surveillance anywhere
Environmentally friendly – No generator, noise or pollution
Wireless communication – Remote monitoring from your PC, laptop, tablet or smartphone
Multi-use – Accepts most IP video surveillance cameras and non-intrusive traffic sensors
Compact design – Deploys in 10 minutes and easy to tow and store
PTZ camera control – Pan, tilt and zoom on your desired location
Preset views – Create several views for instant one-click redirecting of camera

BENEFITS OF REMOTE MONITORING

WORK ZONES

View incidents quicker – Improving emergency response
Smart Work Zone – Monitor congestion “hot spots”
Integrate into TMC – Manage with existing cameras

CONSTRUCTION SITES

Protect equipment – Discourage theft and vandalism
Save time and money – Less surveillance personnel needed
Manage work site – Improve scheduling and logistics

SPECIAL EVENTS

Prevent incidents – View and alert security immediately
Video recording – Incident record for investigation
Manage pedestrians and motorists – Improve safety and mobility

HIGH-QUALITY CONSTRUCTION

Powder coating superior finish – Impact, humidity, salt spray and rust resistant
4 leveling jacks – For stabilization and easy transportation
Manual lift mechanism – For quick deployment
Heavy-duty plastic fenders – For durability
Plastic battery boxes – To minimize battery corrosion
Lockable control box – For security
2-in. (51 mm) coupler or 3-in. (76 mm) pintle eye – For easy towing

OVERALL DIMENSIONS

Overall length: 189 in. (4791 mm)
Overall width: 90 in. (2292 mm)
Operating height: 377 in. (9563 mm)
Traveling height: 63 in. (1591 mm)
Axle/suspension: 1588 kg (3,500 lb.)
Weight (approx.): 1280 kg (2,822 lb.)

GENERAL SPECIFICATIONS

30 amp battery charger
30’ orange painted mast

OPTIONS

Stream live video of work zone
Record video
Traffic sensor
